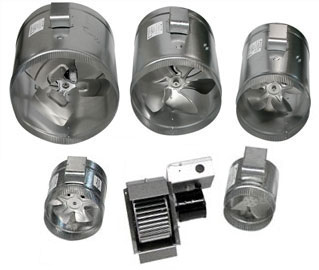

| Duct Booster®
Fans
Duct Booster®
Fans
Your Best Value for
boosting air flow in ducts or for powered air intakes and exhausts. |
|
|
|
|
Residential
and Commercial Sizes.
Quality construction, Economically priced.
|
Boosts
air flow in hard to heat or cool rooms.
Models
for ducts 5" through 14".
Models
EF-6 through EF-14 may be used as exhaust or air intake fans.
Easy
installation in both metal and flex duct.
Optional
speed and Duct Airstat operating controls.
Quiet,
smooth operation.
|

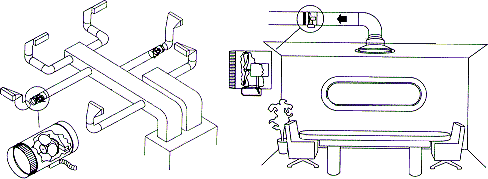

Commercial/
Residential
- Duct
Booster Fan
- Out
Door Air Supply
- Lunch
Room Exhauster
- Pole
Barn Warehouse Exhaust
- Spot
Ventilation
- Bathroom
Exhaust
- Fume
Control systems
|
|
Selection
Table
|
|
|
DUCT
LENGTH IN FEET |
|
Model
|
Motor
Specifications
|
25
Feet
CFM
|
50
Feet
CFM
|
75
Feet
CFM
|
Free
Air
CFM
|
DB-2, 6" Duct
DB-2, 8" Duct |
120V
1/70 HP .51A
|
150
250
|
100
220
|
95
180
|
200
275
|
| EF-6 |
120V
30 Watt .40A
|
150
|
100
|
90
|
180
|
| EF-8 |
120V
56 Watt 1.1A
|
300
|
250
|
200
|
325
|
| EF-10 |
120V
1/100 HP .46A
|
400
|
325
|
275
|
475
|
| EF-12 |
120V
1/35 HP 1.25A
|
800
|
700
|
600
|
875
|
| EF-14 |
120V
1/25 HP 1.70A
|
1100
|
1000
|
900
|
1200
|
- Table is based on straight metal duct. 90 Degree
elbows are equivalent to 10 feet of straight duct. Performance based on 70 degrees F. standard air.
- The DB-2 can be installed in round ducts up to 8",
rectangular ducts as shallow as 3 1/4".
- The number after EF-matches the duct diameter. Example EF-8 connects
to 8" round duct.
- For complete dimension and performance specifications
consult factory.
|
|
HIGH PRESSURE DUCT BOOSTER®
FANS
|
|
|
Versatile and durable Tjernlund M and P-Series
Fans feature high pressure air handling performance with low noise and
extremely low power usage.
M-Series fans (metal housing) are ideal for
long runs or air supply and exhaust applications requiring exacting performance.
Use P-Series fans (plastic housing) as ultimate bathroom/spa exhausters
to eliminate fogged mirrors and lingering odors, super quiet. They
also work great for exhausting high moisture areas such as sub-slab radon
gas mitigation and dryer vent boosting. |

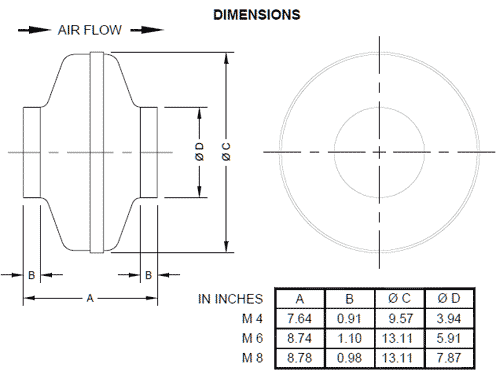

M-Series (Metal) Performance
|
Model
|
Amps |
Watts
|
RPM
|
Volts
|
CFM VS Static Pressure
0" 1/8" 1/4" 3/8" 1/2" 3/4" 1" 1 1/2" 2" |
Duct
Dia.
|
Weight
|
|
M-4
|
.9
|
100
|
3000
|
120
|
200 190 185 175
165 145 110
35 -- |
4"
|
9 LBS.
|
|
M-6
|
1.1
|
125
|
3000
|
120
|
530
510 490 465
440 375 310
175 -- |
6"
|
13 LBS.
|
|
M-8
|
1.8
|
210
|
3000
|
120
|
670 655 635
565 585 540
485 380 260 |
8"
|
15 LBS.
|

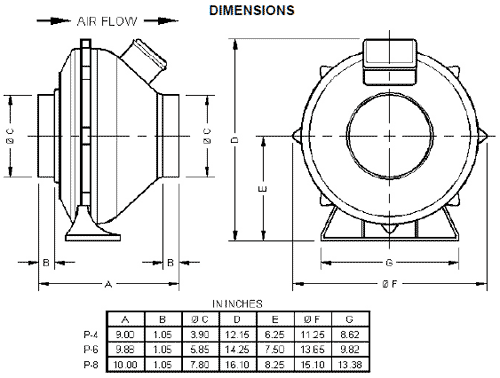

P-Series (Plastic) Performance
|
Model
|
Amps |
Watts
|
RPM
|
Volts
|
CFM VS Static Pressure
0" 1/8" 1/4" 3/8" 1/2" 3/4" 1" 1 1/2" 2" |
Duct
Dia.
|
Weight
|
|
P-4
|
.9
|
100
|
3000
|
120
|
200 190 185 175
165 145 110
35 -- |
4"
|
6 LBS.
|
|
P-6
|
1.1
|
125
|
3000
|
120
|
530
510 490 465
440 375 310
175 -- |
6"
|
8 LBS.
|
|
P-8
|
1.8
|
210
|
3000
|
120
|
670 655 635
565 585 540
485 380 260 |
8"
|
10 LBS.
|
Model
PS1503 Duct Airstat
-
Senses positive
pressure from central blower
-
Works year-round
for both heating and a/c
-
Simplifies
wiring
|
|
Model
SCP Speed Control
|
 |
- Plug in speed control for use with
M and P Series High Pressure Fans.
SCP Instructions
|
|
|
Model
SC-1 Speed Control
-
Use to turn
Duct Fans on/off and to vary motor RPM
-
Can be used
with PS1503 Duct Airstat.
-
Can be used
with Models EF-6, EF-8,
&
EF-10 (Face plate fits models EF-6, 8, 10)
|
SC-1
G-Series
BD-Series
|
|
DR-10 Dryer Vent Switch
Used to automatically activate P-Series Duct Booster
when dryer is in operation
|
G-Series Supply/Exhaust Grills
White plastic, dual
purpose grills with mounting
collars (4", 6", 8" Sizes)
|
BD-Series Back Draft Dampers:
Galvanized steel, spring
loaded dampers prevent
backdrafts. (4", 6", 8" Sizes)
|
|
|
|
